All NorthStar Trailers 100% Australian made to the highest quality. We offer a 1 Year Warranty.
Trailer weight may vary depending on construction

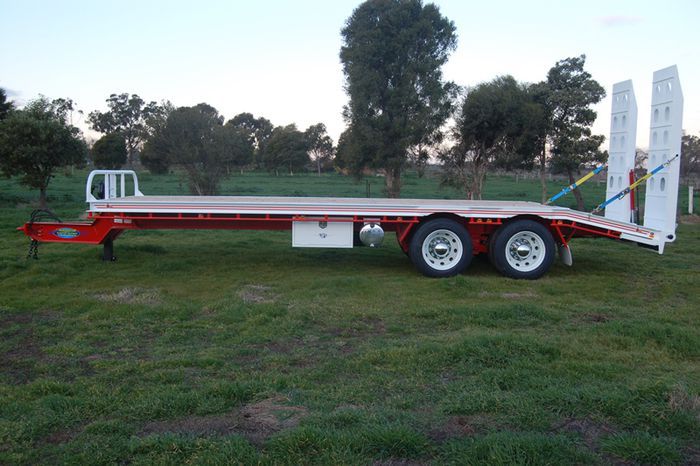

The deck is 7.5 metres in length with a width of 2.5 metres. A 6.0m top deck,with a 1.5 m beavertail. The trailer height with 20” axle is from 1050mm.
The main chassis frame has a depth of 400mm (310UB). Cross members are made of 100 x 50 x 4mm RHS and the combing rail is constructed of 125 x 65 channel.
Tie down points are positioned in the floor along each side of the trailer to allow tensioning of loads with chains. A 65mm roll bar is fitted at the front of the trailer. A rope rail is fitted to the trailer underneath of the combing rail..
Construction of rear ramps are 2.500 x 750m wide, 150 x 50 x 4mm RHS, with 5mm checker plate and grip bars. Expanded mesh can also be fitted if required.
The hinge pins are made of 40mm high tensile steel with greasable bushes to save on excess wear and tear. Hydraulics are fitted as standard, which has a self sufficient power pack located in the well, at the rear of the trailer. The truck (12 or 24 volt) charges the power pack. The rams are heavy duty, 18" x 2 ½ " in size, mounted on the rear of the ramps. Front ramps are also avaible as an extra, to support front loading trailers.
Bi Fold ramps and Front ramps are also available as an option.
The floor is constructed of 5 mm checker plate.
A choice of the Bartlett 59 AX or the DB1385 Pintle eye. 50mm Ringfeder.
20” axles with 10 on 285 PCD are fitted as standard.
17.5” & 19.5” can also be supplied when required.
ABS Braking Systems are fitted. The trailer shall be to ADR 38-2 standard with 7" linings, full air using an A.B.C. brake system, with 24 / 30 boosters.
Suspension is a FUWA KHITCH under slung style with 9 leaf springs.
Airbag suspension is also an option that can be fitted.
255R / 70 22.5” are fitted as standard. 235/70 17.5” & 265/70 19.5” are also available. The trailer is fitted with a spare wheel and tyre as standard. The spare wheel carrier is mounted between the chassis rails for easy access for (1) one only person to remove and replace spare wheel. Clamped up by a winch mechanism for simple use.
A quality K Hitch Two Speed Wind down Leg fitted as standard.
Available as an extra is a NorthStar Hydrulic front leg for easy use.
LED lights are fitted as stardand and mounted as per ADR 62 / 00 requirements with a round 7 pin trailer plug.
The trailer is fitted with an under mounted low profile tool box as standard as well as one in the beavertail.
60lt aluminum water tank comes fitted as standard.
Extra toolboxes or custom made toolboxes can be supplied if required.
Mudguards are mounted at the front and rear of the wheels with steel stays.
Mud flaps are attached to the rear guards.
Our finishing process eliminates all burrs and sharp edges, as well as sandblasting and coating with two pack paint in your fleet colours.
Every trailer comes with 12 months Full Warranty.
North Star Transport Equipment is a company prepared to go the extra mile and has a high reputation of service and quality.
*Please note: Ratings are Federal Ratings, but may differ from state to state. Capacities quoted are to the best of our knowledge and we accept no responsibility for these quoted weights, but if difficulties arise, please notify us with your problems.
