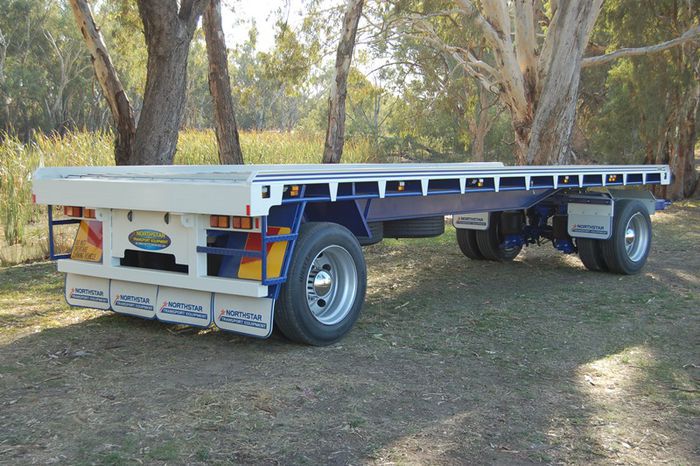

2 Axle Dog Trailer

Two Axle Dog Trailer
Two Axle Dog Trailer
North Star 2 Axle Dog Trailer
2 Axle Dog North Star
2 Axle Dog North Star
North Star Australian Made 2 Axle Dog Trailer
 Australian Made 2 Axle Dog Trailer
Call for Price

Trailer Weight Capacities

All NorthStar Trailers 100% Australian made to the highest quality. We offer a 1 Year Warranty.

Axle Group 18tn
Approximate Tare Weight from 4.0tn
Carrying Capacity 14.0tn

Trailer weight may vary depending on construction

Two Axle Dog Trailer Dimensions

The trailer deck can be built to suit your requirements. Commonly between 6-9 MT in length with a width of 2.5 metres. The trailer height with 20” axle is from 1200mm.

Trailer Construction

The main chassis frame of the dog trailer has a depth of 375mm (6mm 350 GR Webb Plate with 130 x 16 Bottom flange). Cross members are made of 100 x 45 TBF and the combing rail is constructed of 125 x 65 channel.

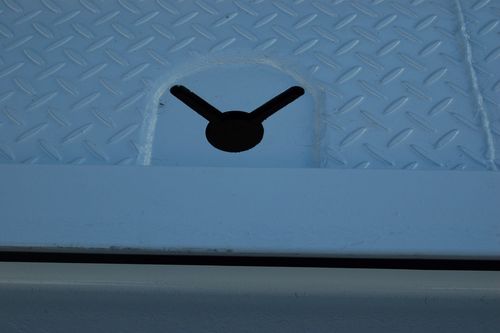

Tie down points  are engineered to 1500 Kg on the trailer are positioned in the floor along each side of the trailer to allow tensioning of loads with chains.

 A rope rail is fitted to the trailer underneath the combing rail.

Trailer Tie Down points

Ball Race

The ball race is a double row 1000 x 90 unit turn table lock is fitted as standard.

Trailer Floor

The floor is constructed of 5 mm checker plate.

Tag Trailer Floor

Trailer Coupling

A choice of the Bartlett 59 AX  or the DB1385 Pintle eye. 50mm Ringfeder.


20” axles with 10 on 285 PCD are fitted as standard.

17.5” & 19.5” can also be supplied when required.

Trailer Brakes

 ABS Braking Systems are fitted. The trailer shall be to ADR 38-2 standard with 7" linings, full air using an A.B.C. brake system, with 24 / 30 boosters.





Suspension is a FUWA K HITCH over slung style with 9 leaf springs.

Airbag suspension is also an option that can be fitted.

Trailer Tyres and Rims

255R / 70 22.5” are fitted as standard. 235/70 17.5” & 265/70 19.5” are also available. The trailer is fitted with a spare wheel and tyre as standard. The spare wheel carrier is mounted between the chassis rails for easy access for (1) one only person to remove and replace spare wheel. Clamped up by a winch mechanism for simple use.

Tag Trailer Wheels and Hubs

Front Leg

A quality wind down leg is fitted to the drawbar.


All lights are LED which are mounted as per ADR 62 / 00 requirements with a round 7 pin trailer plug.


The trailer is fitted with an under mounted low profile tool box as standard. Extra toolboxes can be supplied if required.

Tag Trailer Toolboxes

Water Tank

A 60lt aluminum water tank comes fitted as standard.

Mud Flaps and Mudguards

Mudguards are mounted at the front and rear of the wheels with steel stays.

Mud flaps are attached to the rear guards.


Our finishing process eliminates all burrs and sharp edges, as well as sandblasting and coating with two pack paint in your fleet colors.
Other Extras Available

Other Extras Available

  • Gates, Gate Pockets
  • Fuel and or Water Tank
  • Flush Combing
  • Alloy Wheels
  • BPW Axles
  • Container pins
  • Reversing lights and Camera
