Drill Rod Trailer

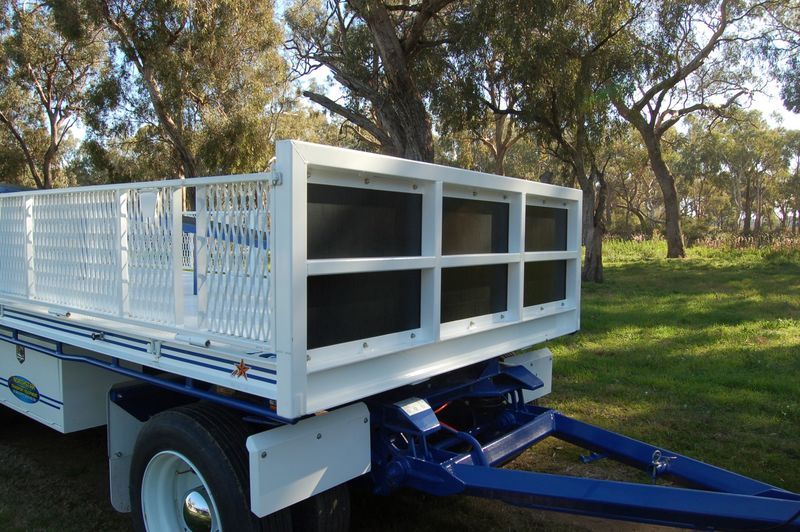

North Star Drill Rod Trailer
Australian Made Drill Rod Trailer
North Star Custom Made Drill Rod Trailer
North Star Drill Rod Trailer
Custom made Drill Rod Trailer
Austalian Made North Star Drill Rod Trailer
North Star Blue Drill Rod Trailer
North Star Drill Rod Trailer
Drill Rod Trailer North Star
Blue North Star Drill Rod Trailer
Call for Price
DRT

Trailer Weight Capacities



Description
Capacity
Axle group 25.5 tn
Approximate Tare Weight From 5.5 tn
Carrying Capacity 20.0 tn

Trailer Weight may vary depending on construction.

All NorthStar Dog Trailers 100% Australian made to the highest quality. We offer a 1 Year Warranty.

Trailer Dimensions

The trailer deck can be built to suit your requirements. Commonly between 6-9 MT in length with a width of 2.5 metres. The trailer height with 20” axle is from 1200mm.

Trailer Construction

The main chassis frame of the Dog Trailer  has a depth of 3.75mm (6mm 350GR webb plate with 130 x 16 bottom flange). Cross members are made of 100 x 45 TBF and the combing rail is constructed of 125 x 65 channel.

Tie down points on the trailer are positioned in the floor along each side of the trailer to allow tensioning of loads with chains.  Tie down points are engineered to 1500 Kg on the trailer are positioned in the floor along each side of the trailer to allow tensioning of loads with chains.

A rope rail is fitted to the trailer underneath the combing rail.

Trailer Tie Down points

Ball Race

The ball race is a double row 1000 x 90 unit. Turn table lock is fitted as standard.

Trailer Floor

The floor is constructed of 5mm checker plate.

Tag Trailer Floor

Dog Trailer Coupling

A choice of the Bartlett 59 AX, 50mm ring feeder or the DB1385 Pintle hook

Axles

20” axles with 10 on 285 PCD are fitted as standard.

17.5” & 19.5” can also be supplied when required.

Trailer Brakes

ABS Braking system fitted.

The trailer shall be to ADR 38-2 standard with 7" linings, full air using an A.B.C. brake system, with 24 / 30 boosters.




Suspension

Suspension is a FUWA K HITCH over slung style with 9 leaf springs.

Airbag suspension is also an option that can be fitted.
Trailer Tyres and Rims

255R / 70 22.5” are fitted as standard. 235/70 17.5” & 265/70 19.5” are also available. The trailer is fitted with a spare wheel and tyre as standard. The spare wheel carrier is mounted between the chassis rails for easy access for (1) one only person to remove and replace spare wheel. Clamped up by a winch mechanism for simple use.

Tag Trailer Wheels and Hubs

Front Leg

A quality wind down leg is fitted to the drawbar.


Lights

All lights are LED which are mounted as per ADR 62 / 00 requirements with a round 7 pin trailer plug.


 Toolboxes

The trailer is fitted with an under mounted low profile tool box as standard. Extra toolboxes can be supplied if required.

Tag Trailer Toolboxes

Water Tank

A 60lt aluminum water tank comes fitted as standard.


Mud Flaps and Mudguards

Mudguards are mounted at the front and rear of the wheels with steel stays.

Mud flaps are attached to the rear guards.


Finishing

Our finishing process eliminates all burrs and sharp edges, as well as sandblasting and coating with two pack paint in your fleet colors.
Other Extras Available

Other Extras Available

  • Gates, Gate Pockets
  • Fuel and or Water Tanks
  • Flush Combing
  • Alloy Wheels
  • BPW Axles
  • Air Bag suspension
  • Container pins
  • Reversing lights and Camera
  • Bi fold Ramps

Every trailer comes with 12 months Full Warranty.

North Star Transport Equipment is a company prepared to go the extra mile and has a high reputation of service and quality.

*Please note: Ratings are Federal Ratings, but may differ from state to state. Capacities quoted are to the best of our knowledge and we accept no responsibility for these quoted weights, but if difficulties arise, please notify us with your problems.

Three Axle Drill Rod Trailer
